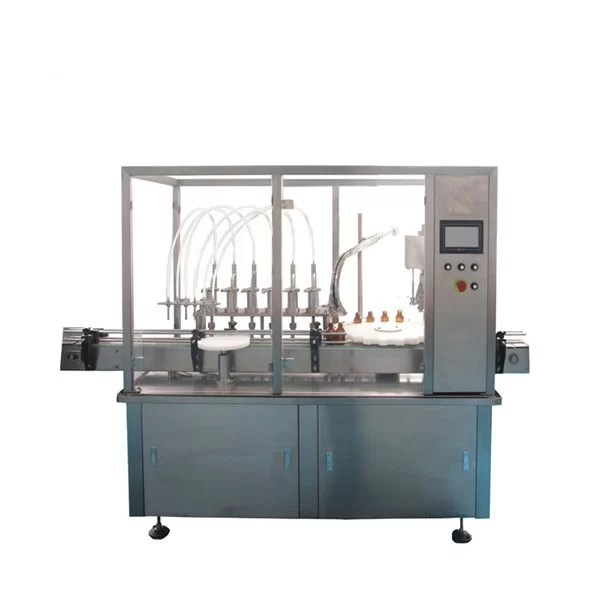

FLS-R80P Automatic Rotary Peristaltic Pump Liquid Filling Machine
High-precision automatic rotary peristaltic pump filling system designed for pharmaceutical, cosmetic, and chemical industries. Features 2-8 filling heads with accuracy ±0.5% for small volume fills (1-500ml).
Share this Product
FLS-R80P Automatic Rotary Peristaltic Pump Liquid Filling Machine
The FLS-R80P Automatic Rotary Peristaltic Pump Filling Machine is engineered for precise small-volume liquid filling applications. The system utilizes advanced peristaltic pump technology for contamination-free filling of valuable products like pharmaceuticals, essential oils, reagents, and specialty chemicals.
The peristaltic pump makes intermittent contact on the outside of the surgical tubing, ensuring product only touches the inside of the tubing. The master computer tracks pump head rotations for precise volume control. When target volume is reached, the pump stops without dripping due to pipette action.
- No bottle no filling, no bottle no plug, no plug no cap function
- 304 stainless steel work surface with 316L liquid contact parts
- GMP compliant design
- High precision CAM indexer for uniform positioning
- PLC and touchscreen control system
- Automatic bottle detection system
- Integrated plugging and capping functions
- Emergency stop and automatic alarm system
- Dust shield protection
| Technical Specifications | |
|---|---|
| Production Capacity | 20-80 bottles/minute |
| Filling Volume Range | 3-30ml, 30-100ml, 100-500ml |
| Filling Accuracy | ≤±1% |
| Filling Nozzles | 2 nozzles |
| Press Capping Nozzles | 1 nozzle |
| Capping Rate | ≥99% |
| Minimum Bottle Size | >10mm |
| Power Supply | 380V 50Hz (customizable) |
| Power Consumption | 2kW |
| Air Supply | 0.3~0.4kfg/cm² |
| Gas Consumption | 10~15m³/h |
| Machine Dimensions | 2600×1300×1600mm |
Suitable Products
- Pharmaceutical liquids
- Essential oils
- Fragrances
- Laboratory reagents
- Eye drops
- Specialty chemicals
- High-value cosmetics
- E-liquids
Optional Accessories
- Bottle unscrambler
- Automatic cap sorter
- UV sterilization system
- Clean room enclosure
- Bottle air cleaning system
- Product collection tank
- Additional filling heads
- Custom bottle holders
